Researchers at KTH Royal Institute of Technology in Sweden have made a groundbreaking discovery in the world of nanomaterials. They have developed a sustainable and scalable method to produce graphene oxide (GO) nanosheets using commercial carbon fibers. This new approach offers a greener alternative to the traditional method of extracting graphene from mined graphite.
Graphene oxide is a highly versatile nanomaterial used in various industries, including electric vehicles (EVs), electronics, and water purification. The discovery is expected to have a major impact on the automotive sector, which relies on battery-based power. Professor Richard Olsson, who led the research, emphasized the importance of finding alternatives to mined graphite.
“The future of car manufacturing will be built on battery-based power, and the question is where the graphite will come from? They will need alternatives,” said Olsson.
Traditionally, graphene oxide is produced from graphite, a process that requires harsh chemicals and often leads to inconsistent material quality due to graphite’s varying purity. In response, KTH researchers sought a more sustainable solution by using readily available carbon fibers as the starting material.
The team successfully exfoliated the carbon fibers using nitric acid, producing graphene oxide nanosheets with properties similar to those obtained from mined graphite. They used carbon fibers derived from polyacrylonitrile (PAN), a widely used polymer, and highlighted that the method could also be adapted to other sources, such as biomass and byproducts from the forestry industry.
Olsson explained that the key to battery functionality lies in the layered graphene inside the graphite. With this new technique, the same graphene can be extracted from commercial carbon fibers, offering a cleaner and more reliable alternative.

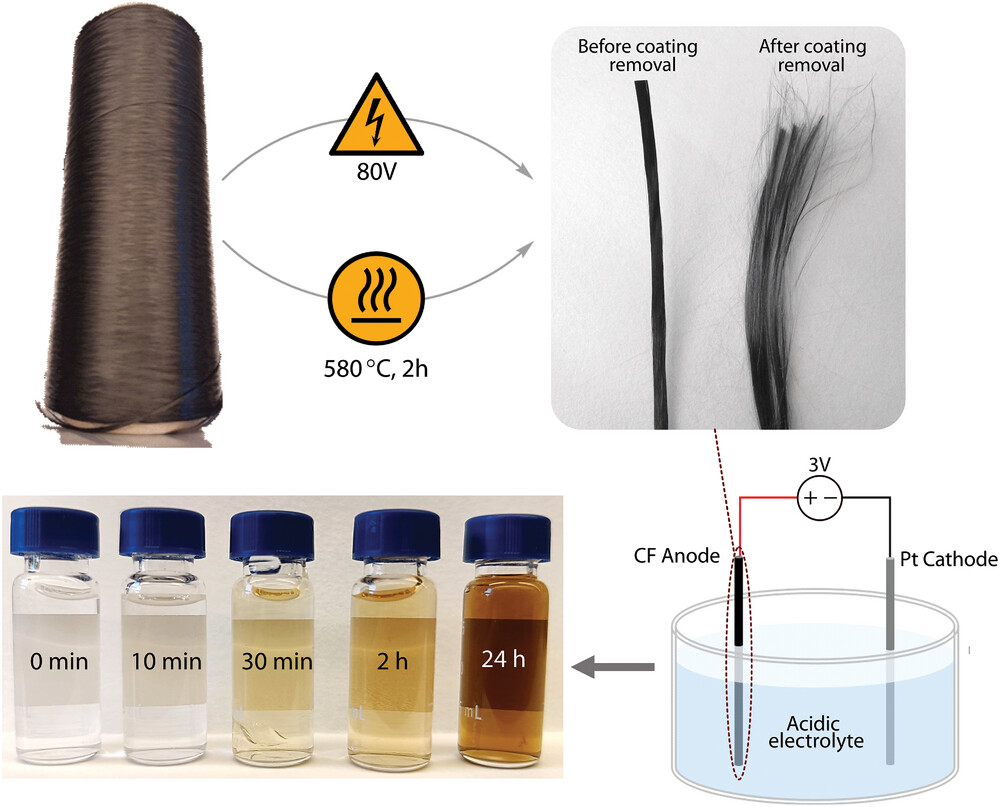

The researchers used an innovative method called electrochemical oxidation. This process involves submerging carbon fibers in a bath of water and nitric acid. When an electric current is passed through the fibers, they lose electrons, which transforms the surface and causes nanoscale graphene oxide layers to peel away.
The study found that a 5% nitric acid solution was the perfect concentration for producing nanosheets between 0.1 and 1 micrometer in size. These sheets had a uniform thickness of about 0.9 nanometers. Interestingly, the nanosheets were circular and elliptical in shape, unlike the polygonal shapes typical of GO obtained from graphite.
One of the most promising aspects of the study is the high yield of graphene oxide produced. The new method generates 200 milligrams of GO for every gram of carbon fiber, making the process not only sustainable but also commercially viable for large-scale production.
The researchers conducted extensive tests to verify the quality of the nanosheets using advanced techniques, ensuring that the material met industry standards.
To prepare the carbon fibers for oxidation, the team developed effective methods for removing protective polymer coatings. They used two heating techniques: heating at 580°C for two hours and shock-heating to 1200°C for three seconds. Both methods proved successful.
The researchers are now focusing on exploring new sources for carbon fibers, particularly biobased alternatives. This could include materials derived from biomass or forestry industry waste, further enhancing the sustainability of the process.
“We’re just scratching the surface,” Olsson said with a smile. “The next step is to see how we can use natural materials to create carbon fibers and push this technology even further.”
The method offers a practical way to produce high-quality graphene oxide without the environmental damage caused by traditional mining practices. With the growing demand for electric vehicles and battery technology.
Professor Olsson said, “We have to think about the future. The demand for battery technology is growing, and we need solutions that are both effective and environmentally responsible. This is just the beginning.”
