Connecting Batteries in Series and Parallel
Series and Parallel Batteries
Let’s begin at the beginning of Connecting Batteries in Series and Parallel, the battery bank. It is the outcome of connecting two batteries in a single use (i.e., sailboat). What do multiple connecting batteries do? By connecting the batteries, you can either boost the amp-hour capacity or the voltage and, in some cases, both, providing more power and energy.
The first thing to be aware of is two methods to connect to two batteries or more. The first is an e-series connection, while the other is known as an asynchronous connection.
What is Difference between Series and Parallel:
You know the distinction between connecting batteries in parallel and series. The parallel is essential for those who have a multi-battery system. The way connections you make to your battery will affect their performance in various applications. Let’s examine how to wire batteries parallel vs. parallel and which method best suits your needs.
Batteries in series pile their voltages together to run equipment that requires a higher voltage. That could be a problem when you attempt to charge your battery since it’s essential to consider the increase in voltage. Due to the increase in voltage, it’s essential to use an appropriate charger to meet the higher voltage output of an in-series configuration. Remember that batteries in series do not affect the ampere-hour capacities of your setup. It is essential to concentrate solely on the higher voltage when charging a battery. For instance, two 6 Volt batteries connected in series will produce 12 Volts of output; however, they’ll have the same amp-hour capacity. Therefore, to charge these batteries, it is crucial to choose chargers that meet the 12 Volt power required for both 6 Volt batteries in series.
Series Battery connection:
Series connections involve connecting two or more batteries to boost the voltage of the battery system while maintaining an identical amp hour rating. Be aware that in series connections, each battery must have the same voltage and capacity rating. Otherwise, you may damage the battery. When connecting the batteries, attach the positive end of one to the negative end until the voltage you want is reached. When charging the batteries in series, you will require an electric charger that is compatible with the system’s voltage. We suggest charging each battery on its own, using a multi-bank charger to prevent an imbalance between the batteries.

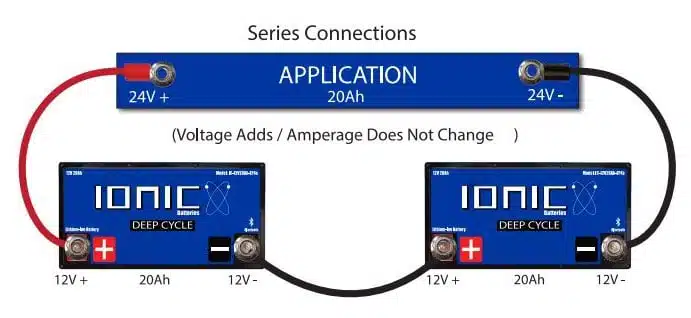

The photo below shows two 12V batteries connected, which transforms this battery bank into a 24-volt system. It is also evident that the bank is still equipped with the capacity at 100 Ah.
Batteries Cable Connection:
The cables connecting the batteries have a significant impact on the performance of your battery. Selecting the right dimension (diameter) and the cable’s length is essential for the overall effectiveness. Cables that aren’t enough or excessively long can cause a loss of power and a higher resistance.

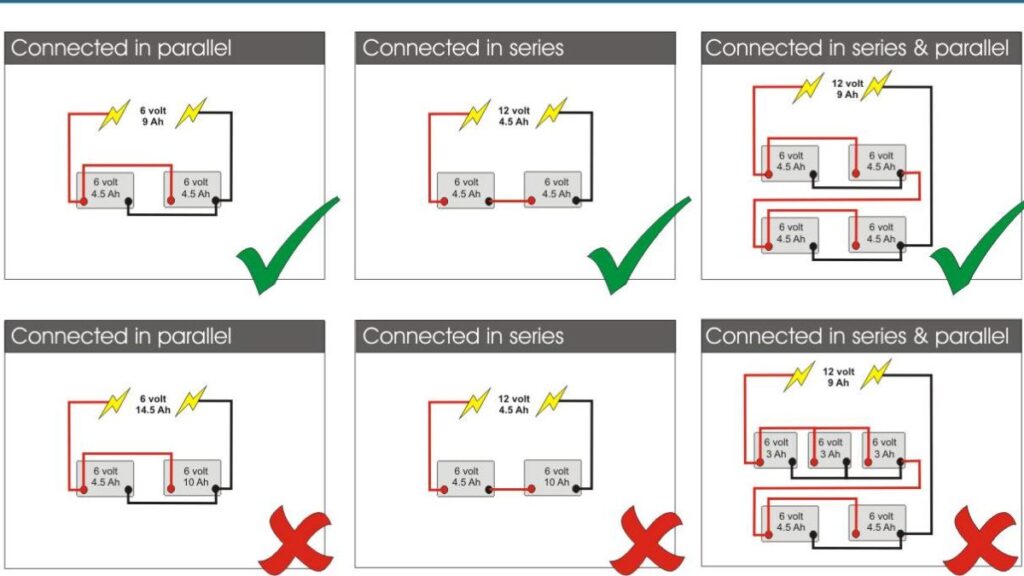

If connecting the batteries in parallel, or series/parallel, the cables connecting the batteries should be the same length. You can observe from the above diagrams all of the short cables that connect the batteries have the same length. Likewise, all long cables have the same length. The batteries are connected using identical resistance, ensuring that all the batteries in the system work similarly.
Attention should be paid to the system cables that supply the loads connected to the bank of batteries should be paid. Most of the time, the system cables that supply loads are connected to the most “easiest” battery to get into the bank, resulting in lower performance and reduced battery life. These system cables that connect through each DC distribution (loads) must be connected across the entire bank by the above diagrams. That ensures that the entire battery bank is discharged and charged equally, ensuring optimal performance.
The system cables and the cables connecting the batteries should be large enough (diameter) to accommodate the entire system’s current. If you have a big inverter or charger for your batteries, you should ensure that your cables can handle the massive currents generated and consumed by such equipment along with all other loads.

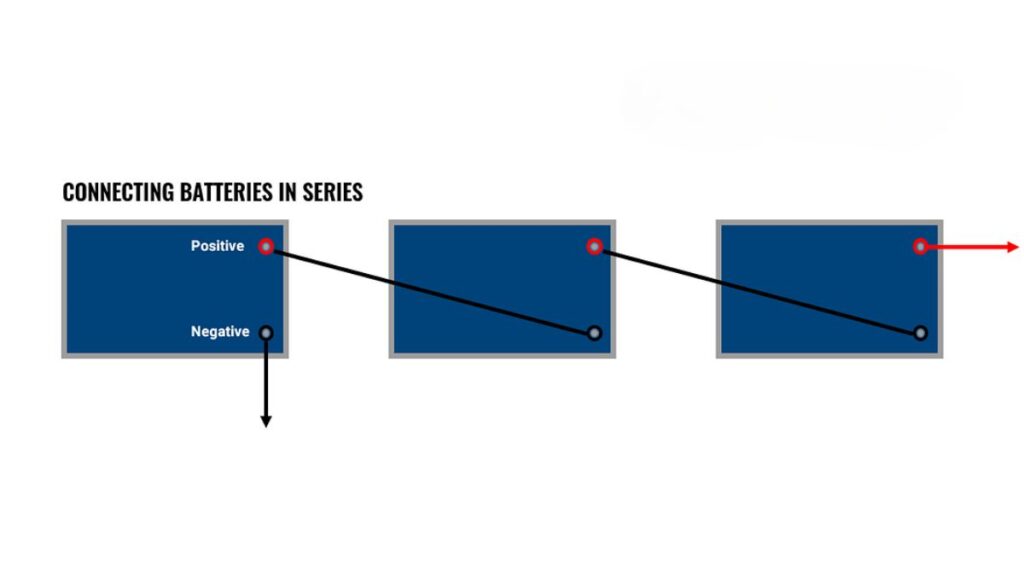

Batteries are connected to produce higher voltage, like 48 or 24 Volt. The plus pole of every battery is connected to the negative pole of the next along with the negative pole of the initial battery and the plus pole from the battery that was the last to be joined to the entire system. This particular arrangement is a 24v, 120AH bank.

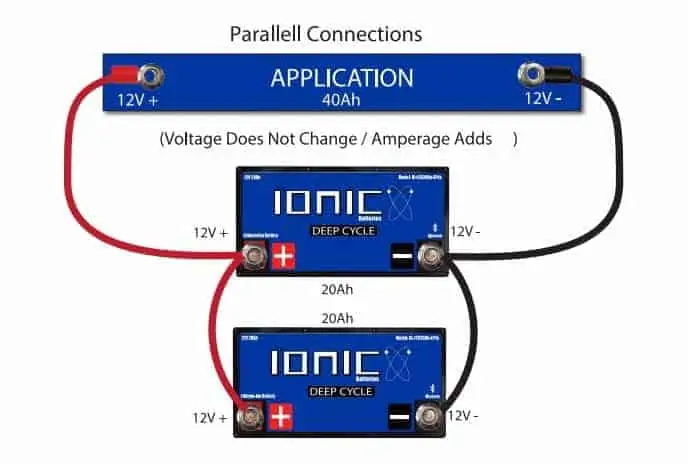

Parallel coupling is the process of connecting the poles with plus of several batteries to one the other, and similarly with the minus poles. The plus pole of the first battery and the negative of the final battery is then joined with the. This arrangement can boost capacity (in this instance, 12v 240AH).
A mix of parallel and series connections is essential when you require, for instance, a battery set of 24 Volt with a larger capacity. The battery is then connected to the system by crossing one of its poles, the initial and the minus pole from the last battery. This particular arrangement is a 24v, 240AH bank.
If you were to look at an independently powered system typically, you would see an inverter and a battery charger systems working towards the same goal: to provide energy. What connects them is the cables that provide the power either to battery sources or the DC distribution. The most frequent problem with installation is that there are not enough cables for the load or the source of recharge.
The correct installation is mainly an issue of fitting the right cable for the purpose, using the right tools to connect terminals, and providing sufficient protection against over-current by using circuit breakers and fuses.
It is easy to determine the size of a cable. It’s dependent on the length of the cable (measuring from the power source to the appliance and back) and the amount of flow of electricity (amperage) that flows through it. It is found by looking at the label of the appliance’s circuit or in the specifications sheet of the appliance. If the cables are longer or the greater the amp, the larger the cable has to be to ensure no voltage loss. There should be enough room for security since appliances could draw more power than the one designed for due to high temperatures or low voltage, an additional load, and other causes.
For circuits with 12V, the relationship between the length of the cable, the current flow, and the cable size. It is important to note that there are two kinds of circuits: Critical and Non Critical. It is important to note that the “critical” circuit is based on the loss of 3% in voltage in the cable. On the other hand, “non-critical” circuits are based on a 10% voltage loss “non-critical” circuit is based on a 10% loss of voltage. That means that when the circuit has been fully loaded (i.e., operating at the maximum amps), the appliance’s voltage will be about 3% or 10% lower than that of the battery. In the example above that if the battery’s voltage is 12.6 volts and the appliance is receiving 12.2 volts (3 percent loss) (or 11.34 volts (10 percent loss).
Battery Status in Series and Parallel Connection:
The Battery Status in series and parallel There is a primary difference between the wiring of batteries in series. The parallel is that it has an effect upon the power output as well as its capacity. Batteries that are wired in series will have their voltages merged. Batteries that are wired in parallel can have the capacity (measured by amp hours) added together.
Connecting 2 Batteries In Series:
The series connection of batteries can increase the voltage but keep your amp hours at the exact level.
- 2 x 12V batteries that are wired in series give you 12V; however, they will only provide 120Ah capacity.
- Two 12V 120Ah batteries connected in series give you 24V; however, it’s only 120Ah.
Connecting 2 Batteries In Parallel:
Connecting batteries in parallel can double capacity but maintain the voltage.
- Two batteries of 120Ah 12V connected in parallel will give you just 12V; however, it will increase the capacity to 240AH.
Batteries in Series and Parallel Voltage:
Keep in mind that the voltage rises when batteries are connected; however, this is not the situation with batteries placed that are in parallel. If the batteries of two or more are connected, the voltage in the circuit is identical to the individual batteries.
Voltage of Batteries in Parallel:
The principle is that when you connect in parallel, you will multiply the ratings for amp hours of each battery, but the voltage remains the same. For instance, two six-volt 4.5 Ah batteries connected in parallel can supply 6 volts 9 amps (4.5 Ah plus 4.5 Ah).
FAQs: Battery in Parallels Problem and Series.
Which Batteries Last Longer In Series Or Parallel?
Connections in series provide a greater voltage, which is marginally more efficient. That means that batteries wired in series may last a bit longer than those connected in parallel. However, batteries that are wired in series instead of. Parallel will offer about the same time. Let’s look at an example to illustrate why this is so.
Two 12-volt batteries that have 100 Ah capacity are running the 240-watt unit. The two wired batteries will produce 100 Ah and 24 volts of capacity. Its current consumption is expected to be ten amps (24 times ten is 240). The theoretical running time of the system in series is 100 Ah divided into ten amps which equals ten hours.
The two batteries working in tandem provide 200 Ah and 12 Volts of capacity. The device’s current draw in this configuration will be 20 amps (12 + 20 = 120). The theoretical running time of this system in parallel is 20 amps divided by 200 Ah, which equals ten hours.
Batteries in Series Vs. Parallel: Which Is For You?
You are choosing whether to connect battery batteries or. The parallel is usually determined by the equipment you’re running requirements. For common use in RV and boating, wiring your batteries in parallel is the most straightforward wiring and voltage. However, for larger applications that exceed 3000 watts connecting them to more powerful series connections may be more appropriate. Once you know how each wiring arrangement works and how it works, you can choose the most appropriate option for your requirements and proceed with confidence.
How Many Batteries Can You Wire In Series?
The maximum number of batteries you can connect in series depends on the manufacturer and battery. Batteries are to be connected into series to make 48-volt systems. Always check with the battery manufacturer to ensure you are not exceeding their recommended limit for batteries in series.
How Many Batteries Can You Wire In Parallel?
There’s no limit to the number of batteries you can connect in parallel. More batteries can add in a parallel circuit, the greater capacity and long time you can run. Be aware of how many batteries put connected in parallel, the more time it takes to recharge the system.
With the huge batteries, parallel banks will have greater current availability too. That means that the correct system fuse is essential to avoid accidental shorts, which could lead to disastrous consequences when there is so much current on hand.
Can You Wire Batteries in Series and Parallel?
You can’t connect the same battery in parallel and series like you would with a short system. However, you can connect sets of batteries in parallel and series to form a larger battery bank with a higher voltage.
